Silicon Carbide Microreactor Microchannelreactor Industrial Level

GXWT-100 (Industrial Production Model) 1. This model features an integrated design with multiple reactor chips, eliminating external...
Availability: In Stock
$299,999.00 USD
$299,999.00 USD
Please hurry! Only 10 left in stock
Limited-Time Offers, End in: 151D 8H 23M 0S
Subtotal: $299,999.00
10 customers are viewing this product
Silicon Carbide Microreactor Microchannelreactor Industrial Level

Silicon Carbide Microreactor Microchannelreactor Industrial Level

$299,999.00

Silicon Carbide Microreactor Microchannelreactor Industrial Level

$299,999.00

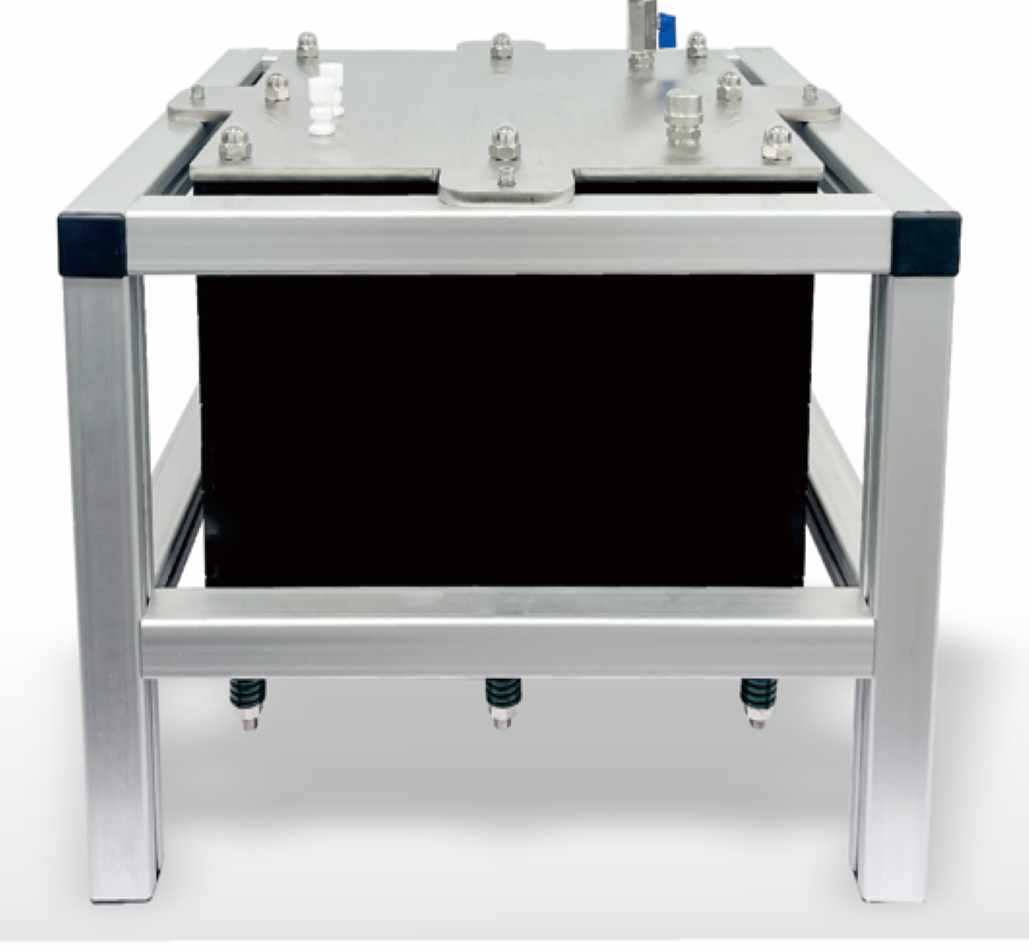

GXWT-100 (Industrial Production Model)

1. This model features an integrated design with multiple reactor chips, eliminating external connecting pipelines. The pipe openings between the chips directly connect without vulnerable components, ensuring reliability and durability. It is suitable for extreme high and low-temperature, high-pressure industrial applications.
2. The reactor unit adopts an integral three-layer hollow silicon carbide plate structure. The reaction and heat exchange channels utilize a unique production process, significantly enhancing overall performance. The reaction chips are externally insulated with thermal materials, providing excellent insulation and heat preservation effects.
3. Chip dimensions: 330mm*330mm, channel size: 6-8mm, reaction flux: 3000/a, conventional liquid holding capacity: 200-300mL, operating temperature: -40°C to 200°C, design operating pressure ≤50bar.
4. The reactor can be designed with PTFE or 316L inlet and outlet liquid pipes, or Hastelloy alloy, depending on requirements. The connections between reaction chips use fully fluorinated ether O-ring seals, ensuring corrosion resistance, high-temperature resistance, and preventing corrosive leaks.
5. This model reactor consists of 5 sets of reaction chips (adjustable based on requirements). The reaction chips come with built-in temperature measurement holes and high-precision temperature sensors. The industrial microchannel reactor control utilizes PLC automation, enabling precise control of reaction conditions. The system provides timely warnings or shutdowns in the event of equipment or reaction faults, ensuring high safety during operation.
