Silicon Carbide Microchannel Reactor

SiC continuous flow reactor

GXWT-18 (Lab Level)


Main Product Parameters

Operating Temperature

-40°C to 200°C

Single Modular Liquid Holding Capacity

18ml (customizable as per requirements)

Operating Pressure

≤30bar

Heat Exchange Channel Interface

4-point external thread (or 12mm spire)

Channel Dimension

2mm*2mm

Modular Dimension

185mm*132mm (±2)

Product Dimensions

LxWxH: 103.50 x41x 43.2cm (including joint length)

Net Weight

38 kg (±1)

Package Dimension

LxWxH: 115 x55x 60cm (Wooden Box)

Packaging Weight

50 kg (±2)

Joint Size

1/8 inch threaded ferrule

Joint Material

Polytetrafluoroethylene (316 stainless steel)

Pipe Size

1/8 inch

Reaction Flux

0.5-6L/h

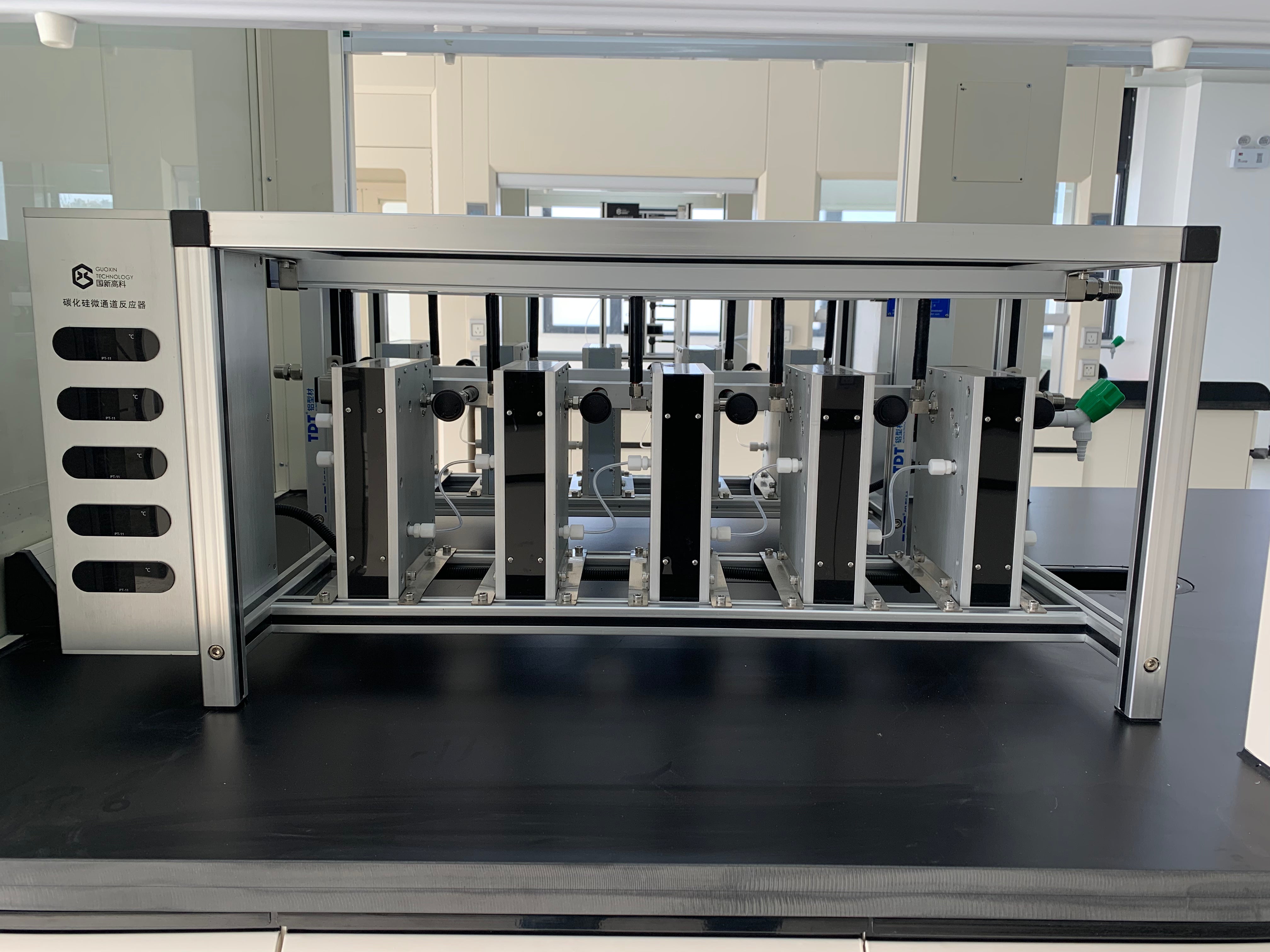

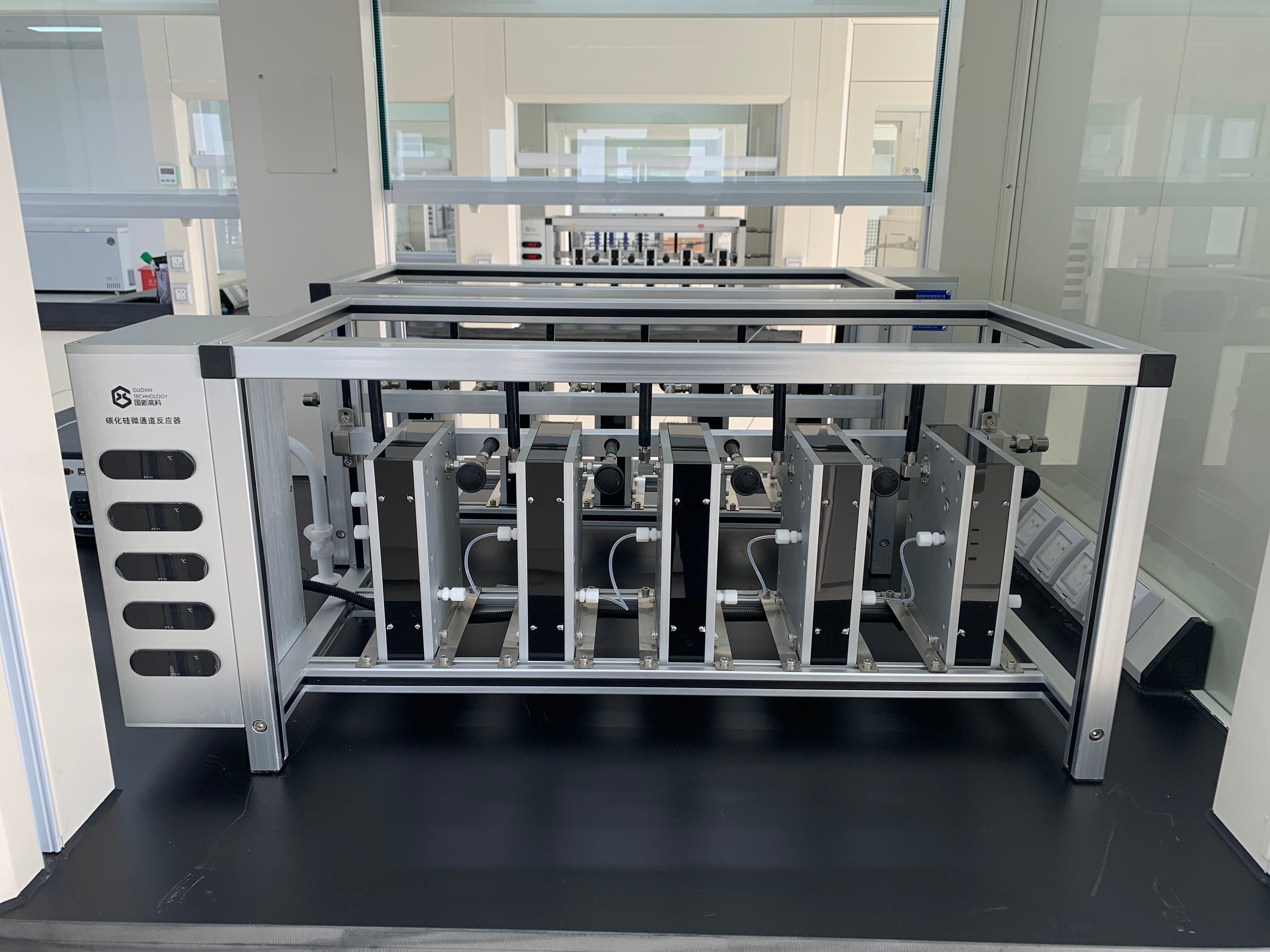

1. Modular Design: This model features a series installation of multiple reactor modules, specifically designed for laboratory applications with lower flow conditions.

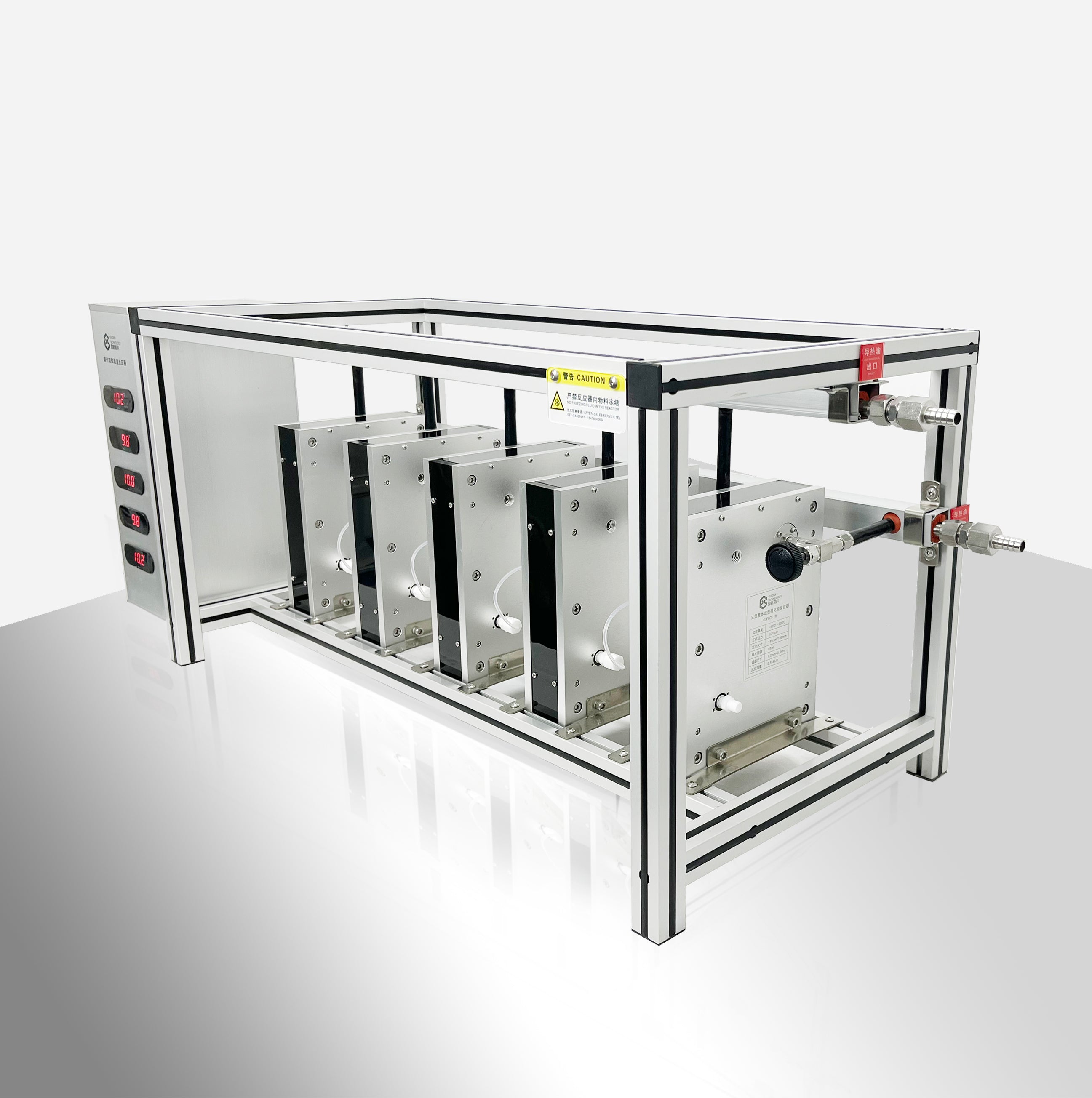

2. Innovative Structure: The reactor unit adopts an integral three-layer hollow silicon carbide plate structure. The unique production process for the reaction and heat exchange channels significantly enhances safety. The reaction modular is externally insulated with thermal materials, providing excellent insulation and heat preservation effects.

3. Key Specifications:

  • Channel Size: 1.2-2.5mm
  • Modular Dimensions: 185mm*132mm
  • Reaction Flux: 0.5-6L/h
  • Conventional Liquid Holding Capacity: 16mL (Customizable: 16-20mL)
  • Operating Temperature: -40°C to 200°C
  •  Design Operating Pressure: ≤30bar

4. Flexible Configuration: The reactor design includes 1/8 PTFE or 316L tubing for inlet     and outlet liquid pipes, offering flexible options. Each set of reaction modulars is designed with a  two-in-one outlet, and the secondary inlet can be flexibly adjusted for use. Specially designed connecting pipes prevent leakage and detachment, ensuring pressure resistance, corrosion resistance, and temperature resistance for safe and reliable operation.

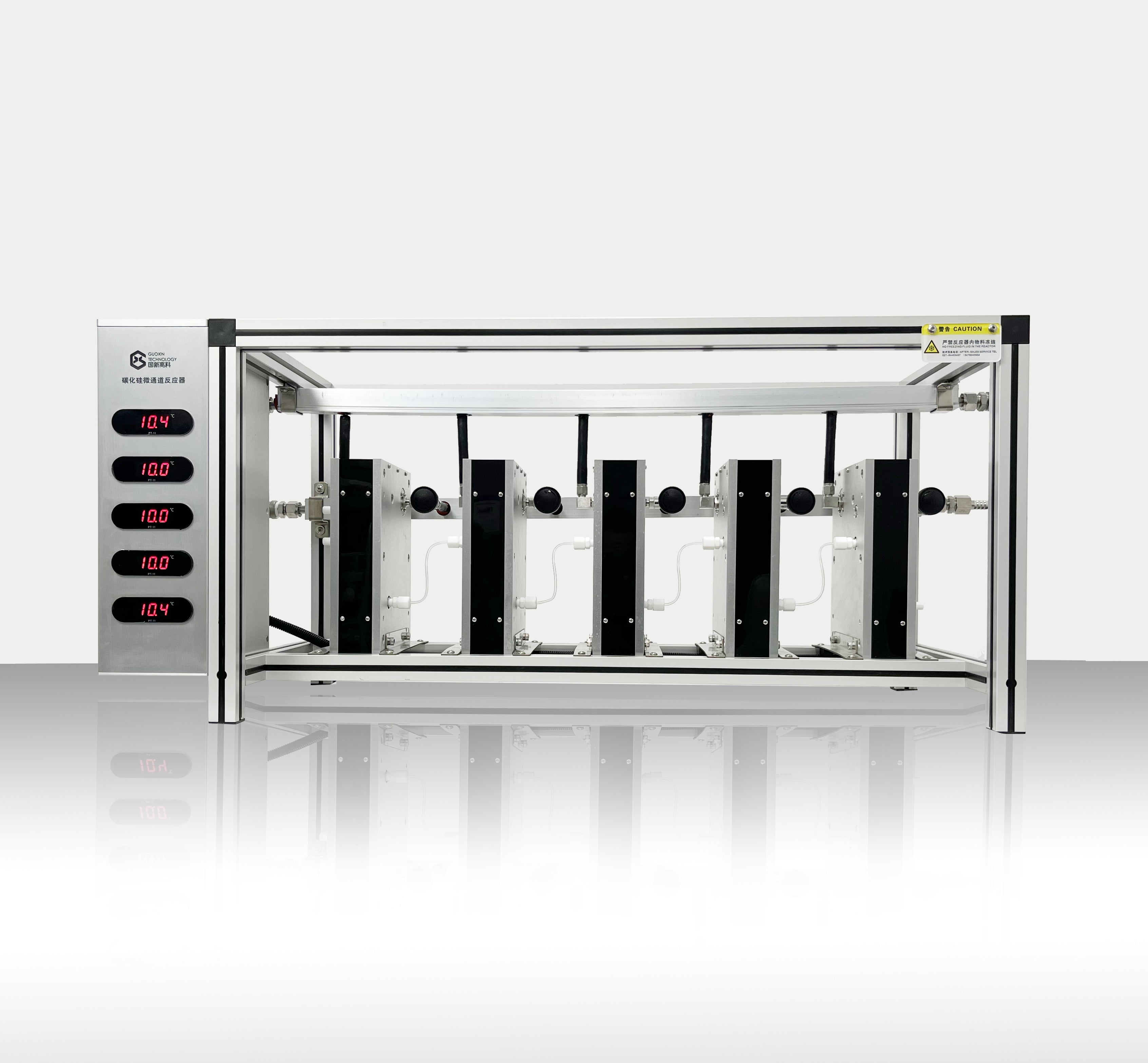

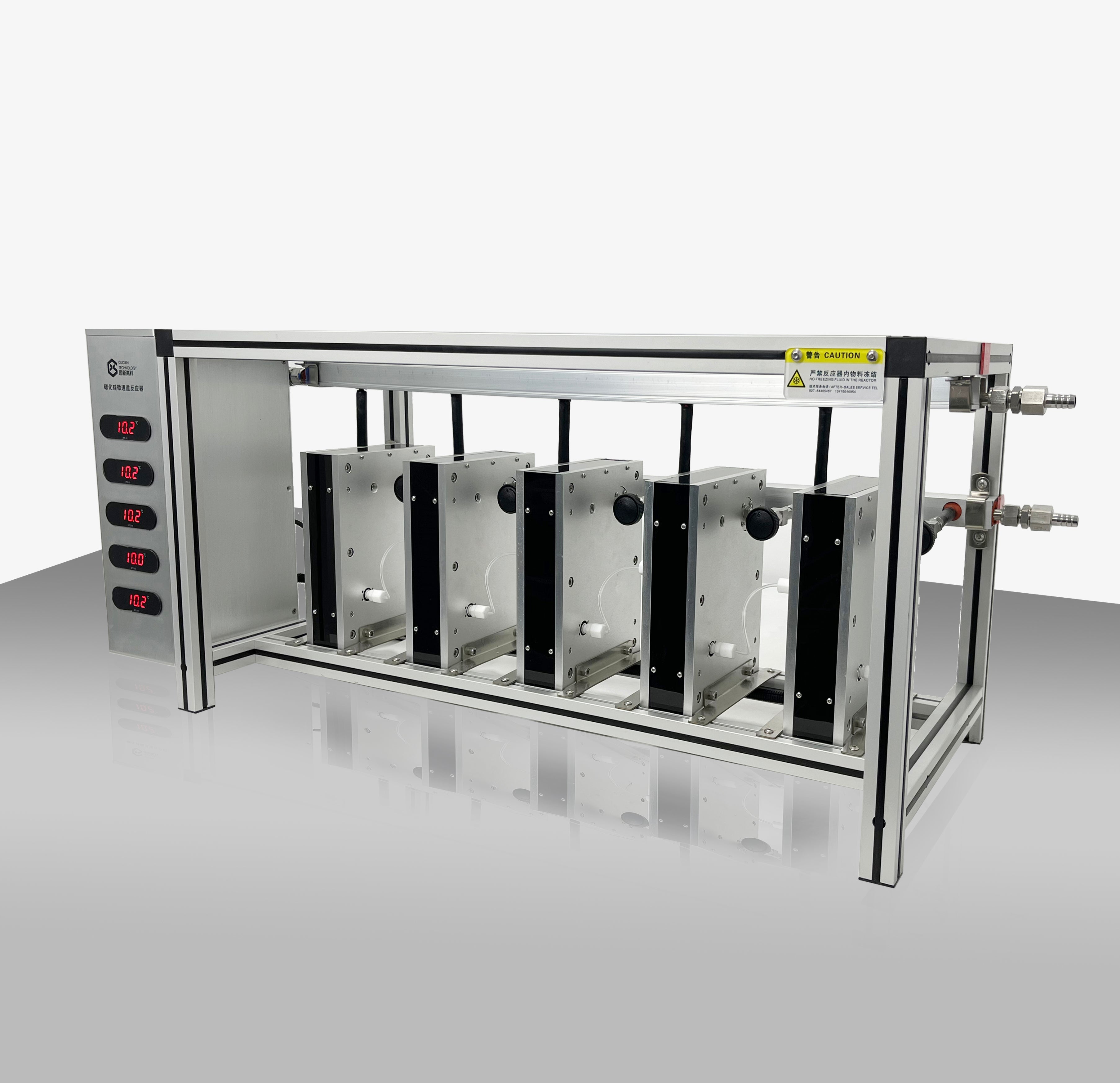

5. Multi-Channel Temperature Display: The reactor consists of 5 sets of reaction modulars, equipped with a multi-channel temperature display. The number of reaction modulars can be customized according to specific requirements.

6. Advanced Heat Exchange: The reactor features two main heat exchange interfaces with customizable standards. Each reaction modular is equipped with an independent control heat exchange regulating valve, allowing individual heat exchange temperature control for each modular. This design enables flexibility in adjusting reaction conditions.


Discover the Future of Chemical Processing with Our Silicon Carbide Microchannel Reactor


Elevate your chemical synthesis to unprecedented levels of precision, safety, and efficiency with our cutting-edge Silicon Carbide Microchannel Reactor. Designed specifically for pharmaceutical companies, fine chemical manufacturers, and research institutions, this reactor leverages the exceptional properties of silicon carbide—high thermal conductivity and corrosion resistance—to expertly manage exothermic reactions and handle aggressive chemicals with ease. The innovative microchannel design enhances heat and mass transfer, delivering faster reaction rates, higher yields, and superior purity, making it an ideal choice for your most critical applications. Scalable from lab-level experiments to semi-industrial production (up to 200 tons per year), it operates across a wide temperature range (-40°C to 200°C) and withstands pressures up to 30 bar, adapting seamlessly to your unique needs. Prioritizing safety, the reactor minimizes risks associated with hazardous reactions, ensuring a secure environment for your team. Its modular design offers effortless customization and expansion, providing unmatched flexibility for evolving projects. Ready to transform your processes? Contact us today for a consultation and unlock the potential of this revolutionary technology—limited-time offers await early adopters!

The types of chemical reactions suitable for microchannel reactors
