Silicon Carbide Microreactor Microchannelreactor Semi-Industrial Level，SiC Continuous Flow Reactors
GXWT-18 (Semi-Industrial Level) Silicon Carbide Microchannel Reactor Sic Continuous Flow Reactors Main Product Parameters Operating Temperature -40°C...
Availability:
In Stock
- Unit price
- per
Limited-Time Offers, End in:
151D
8H
23M
0S
10 customers are viewing this product

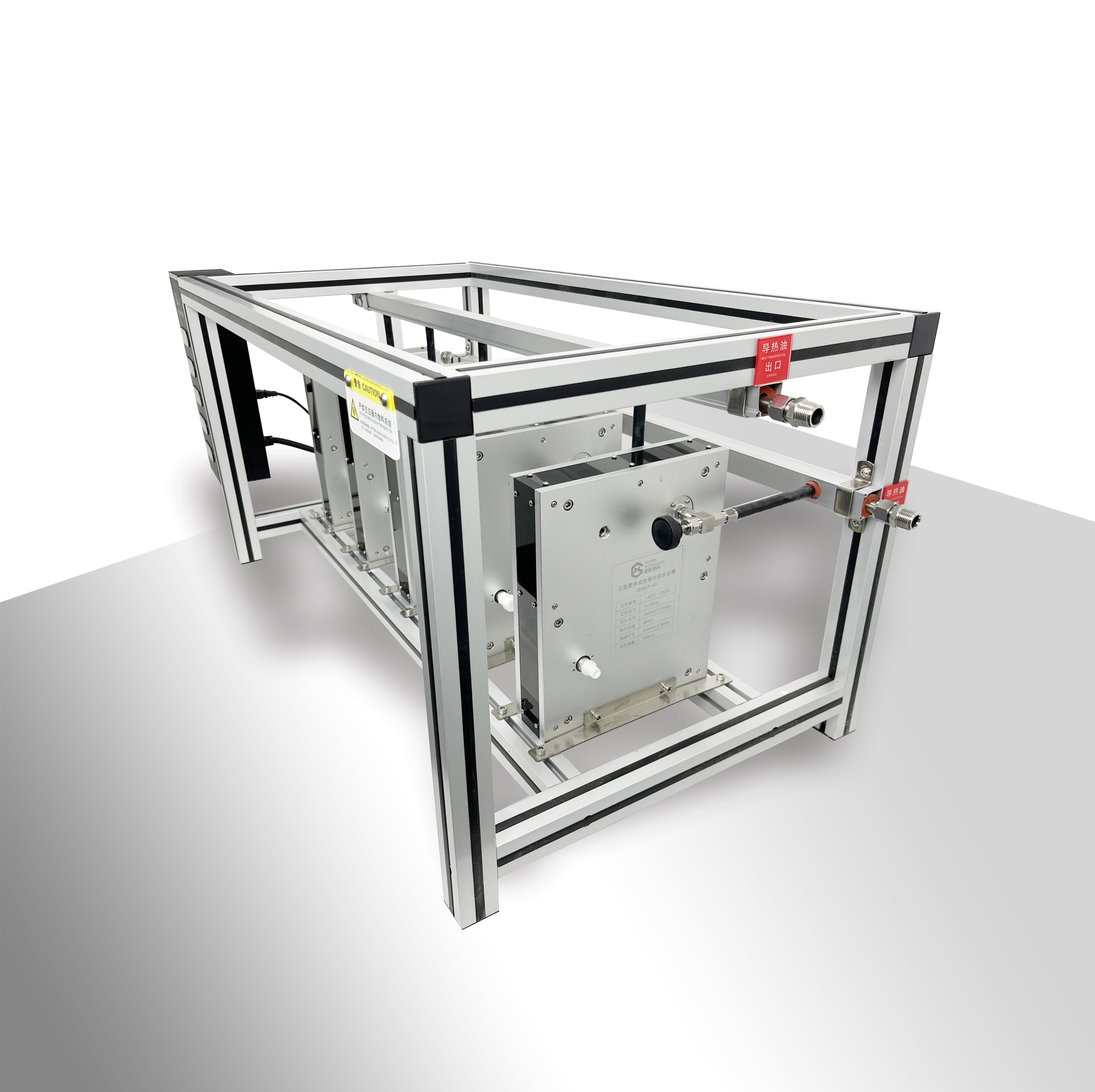

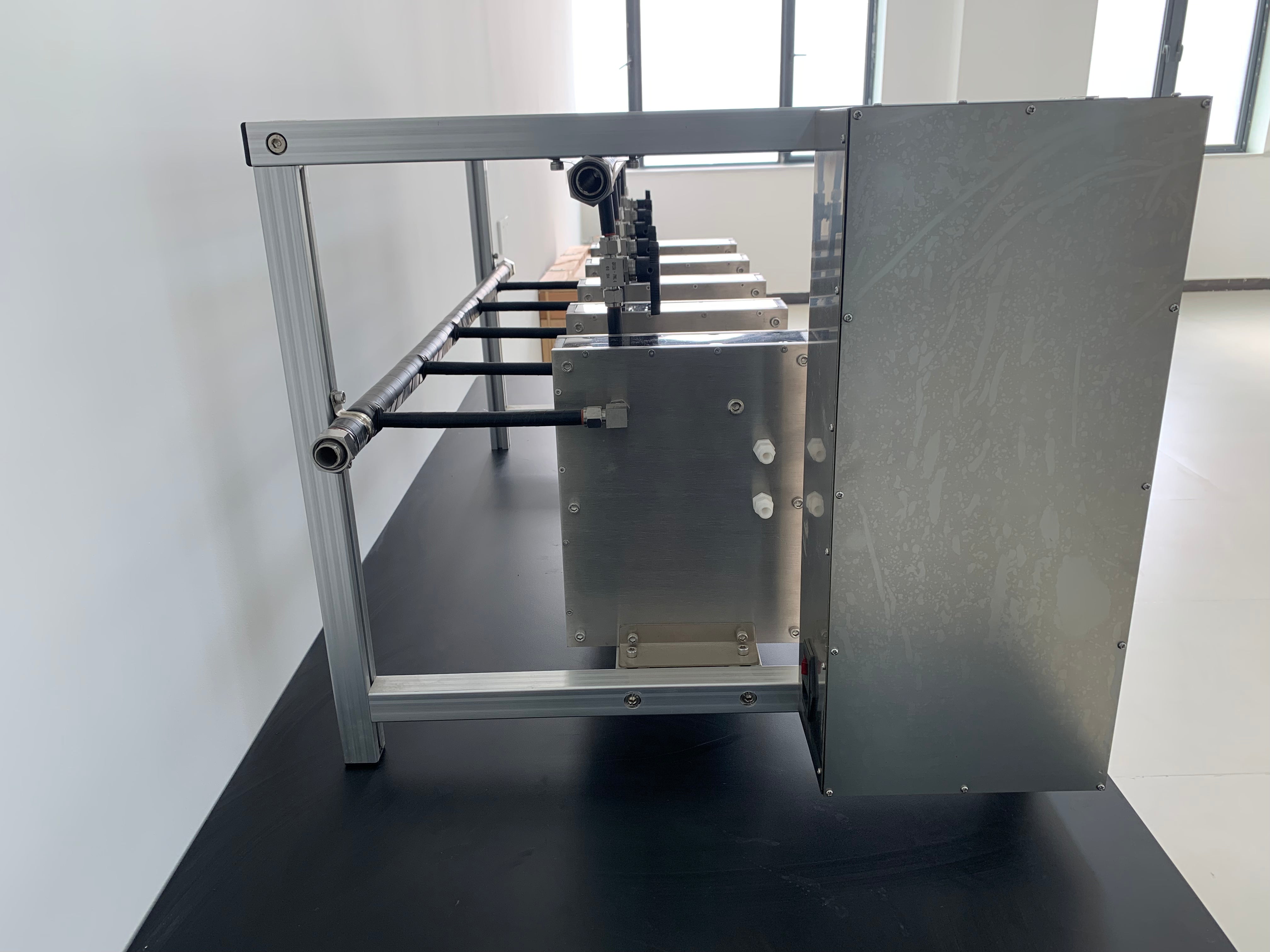

GXWT-18 (Semi-Industrial Level)
Silicon Carbide Microchannel Reactor
Sic Continuous Flow Reactors
Main Product Parameters |
|||
| Operating Temperature | -40°C to 200°C | Single Modular Liquid Holding Capacity | 60-80ml (customizable as needed) |
| Operating Pressure | ≤30bar | Heat Exchange Channel Interface | 4-point external thread (or 12mm spire) |
| Channel Dimension | 4mm*5mm | Modular Dimension | 225mm*170mm |
| Product Dimensions | L*W*H: 117.5*55*50.4cm (including joint length) | Net Weight | 51.58 kg |
| Package Dimension | L*W*H: 132*70*73cm (Wooden Box) | Packaging Weight | 70 kg |
| Joint Size | 1/4 inch threaded ferrule | Joint Material | Polytetrafluoroethylene (Non-conventional 316 Stainless Steel) |
| Pipe Size | 1/4 inch | Reaction Flux | 200t/a |

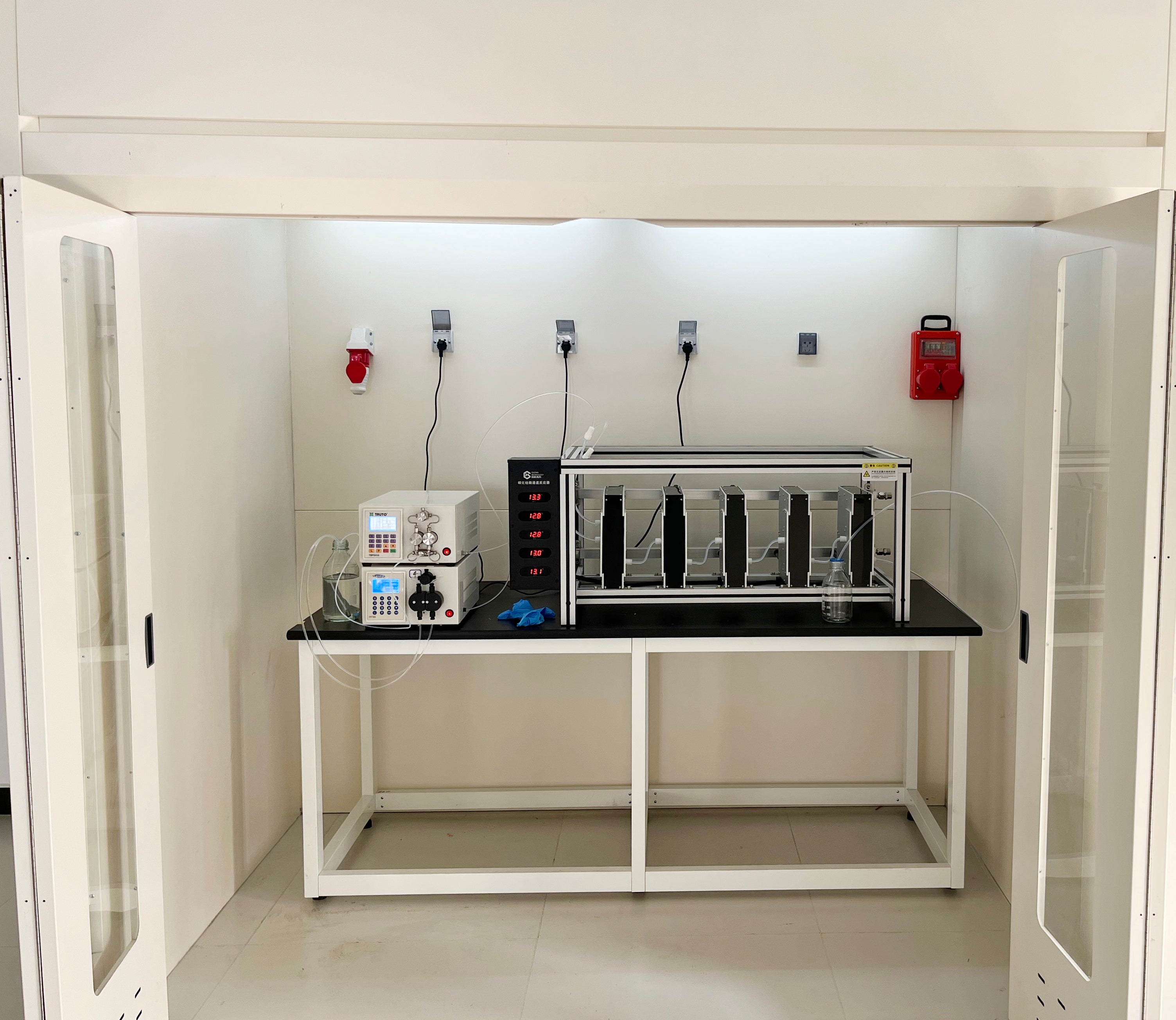

1. This model is designed for the serial installation of multiple reactor modules, covering applications from laboratory use to small-scale pilot production.
2. The reactor unit adopts an integral three-layer hollow silicon carbide plate structure, with a unique production process for the reaction and heat exchange channels, significantly improving safety. The external surface of the reaction chip is insulated with thermal materials, providing excellent thermal insulation.
3. Chip dimensions: 225mm*170mm, channel size: 3.5-6mm, reaction flux: 200t/a, conventional liquid holding capacity: 60ml (customizable in the range of 50-80ml). Operating temperature: -40°C to 200°C, design operating pressure ≤50bar.

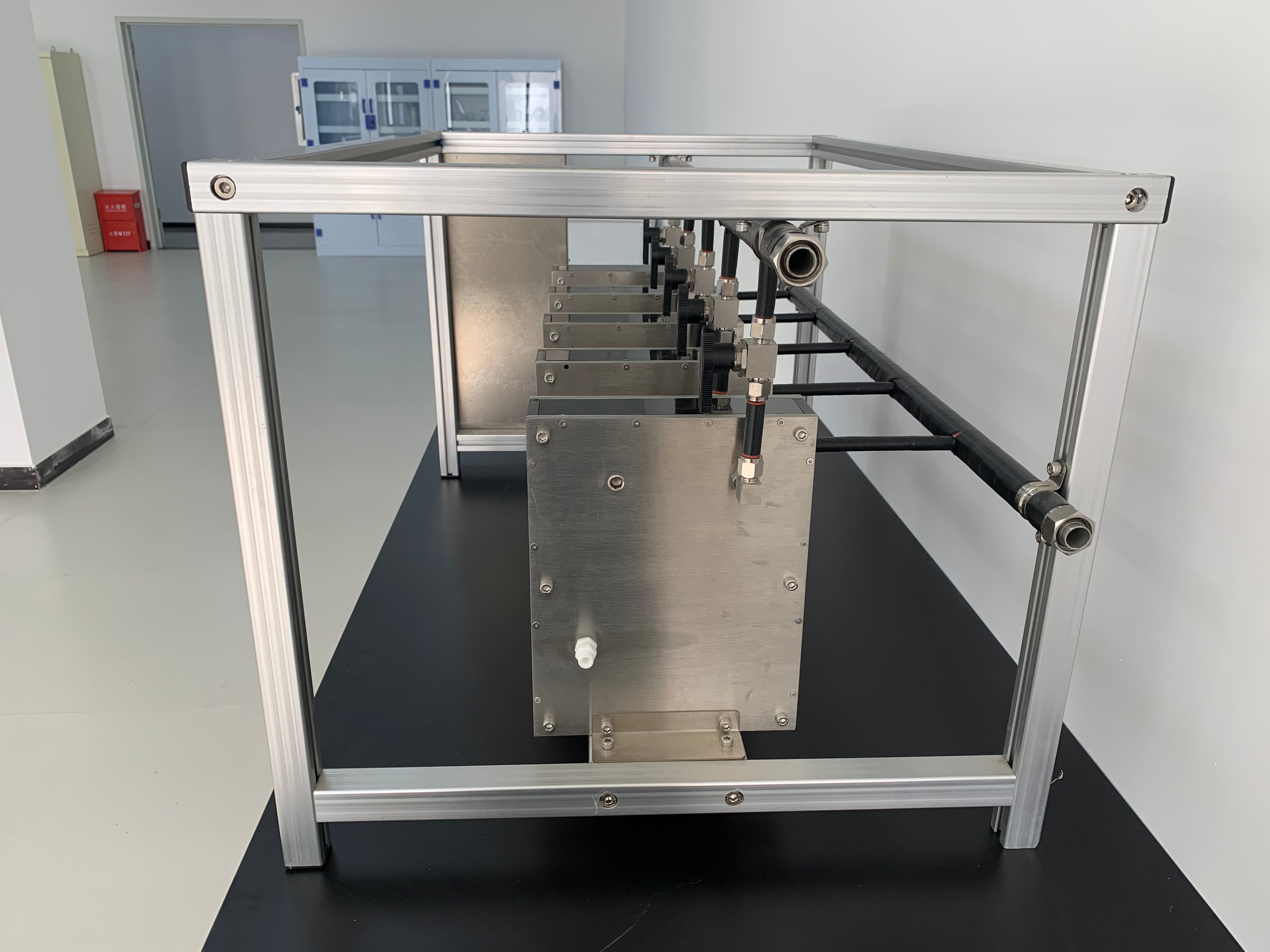

4. The reactor is designed with 1/4 PTFE or 316L pipes for inlet and outlet liquid flow (conventional pressure resistance above 30kg/cm²), allowing flexible configuration. Each group of reaction chips adopts a two-in-one-out joint design, and the secondary inlet can be flexibly adjusted for use. The unique design of the connecting pipes prevents detachment and leakage, ensuring pressure resistance, corrosion resistance, and reliable operation in high and low-temperature environments.

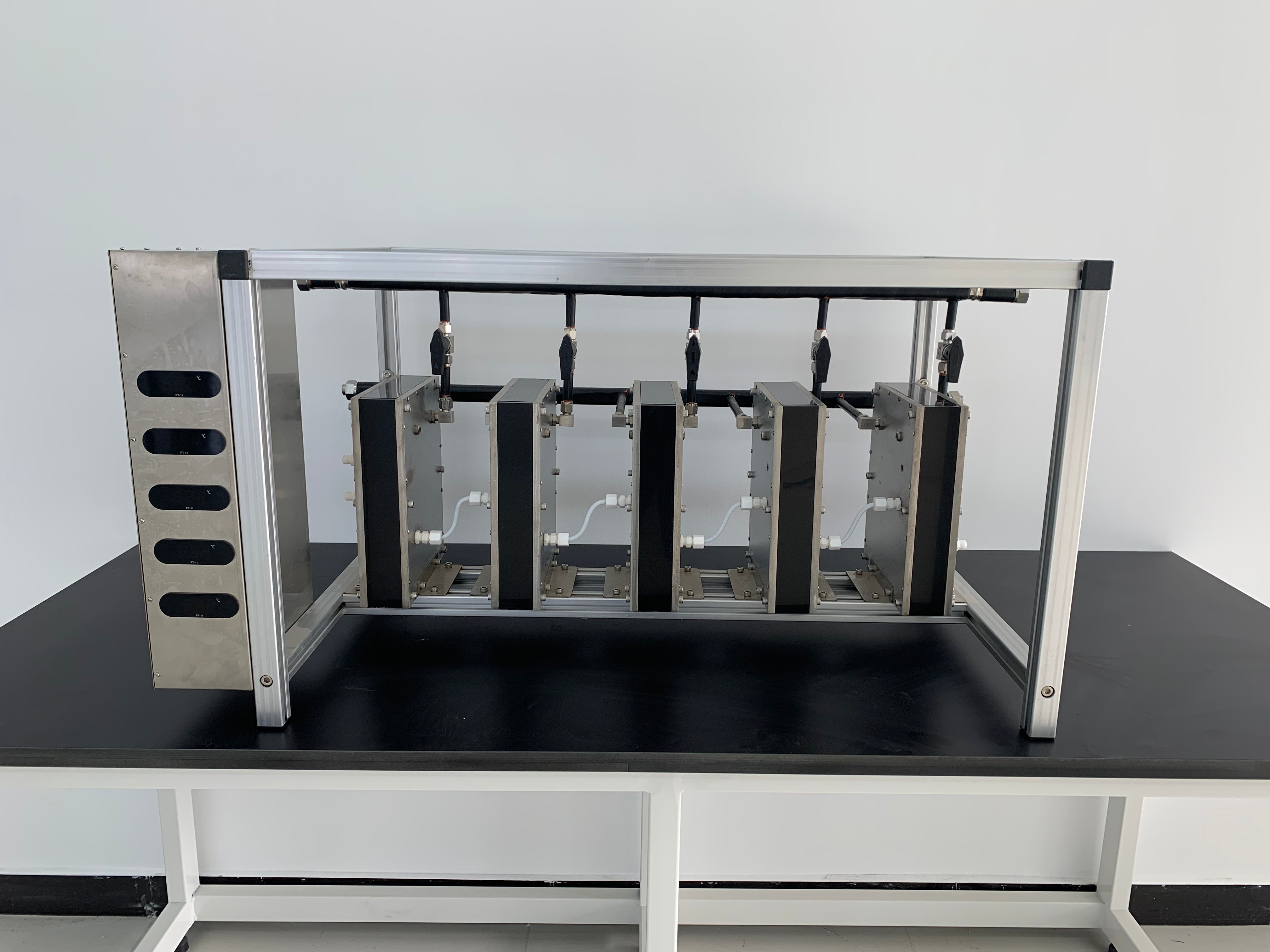

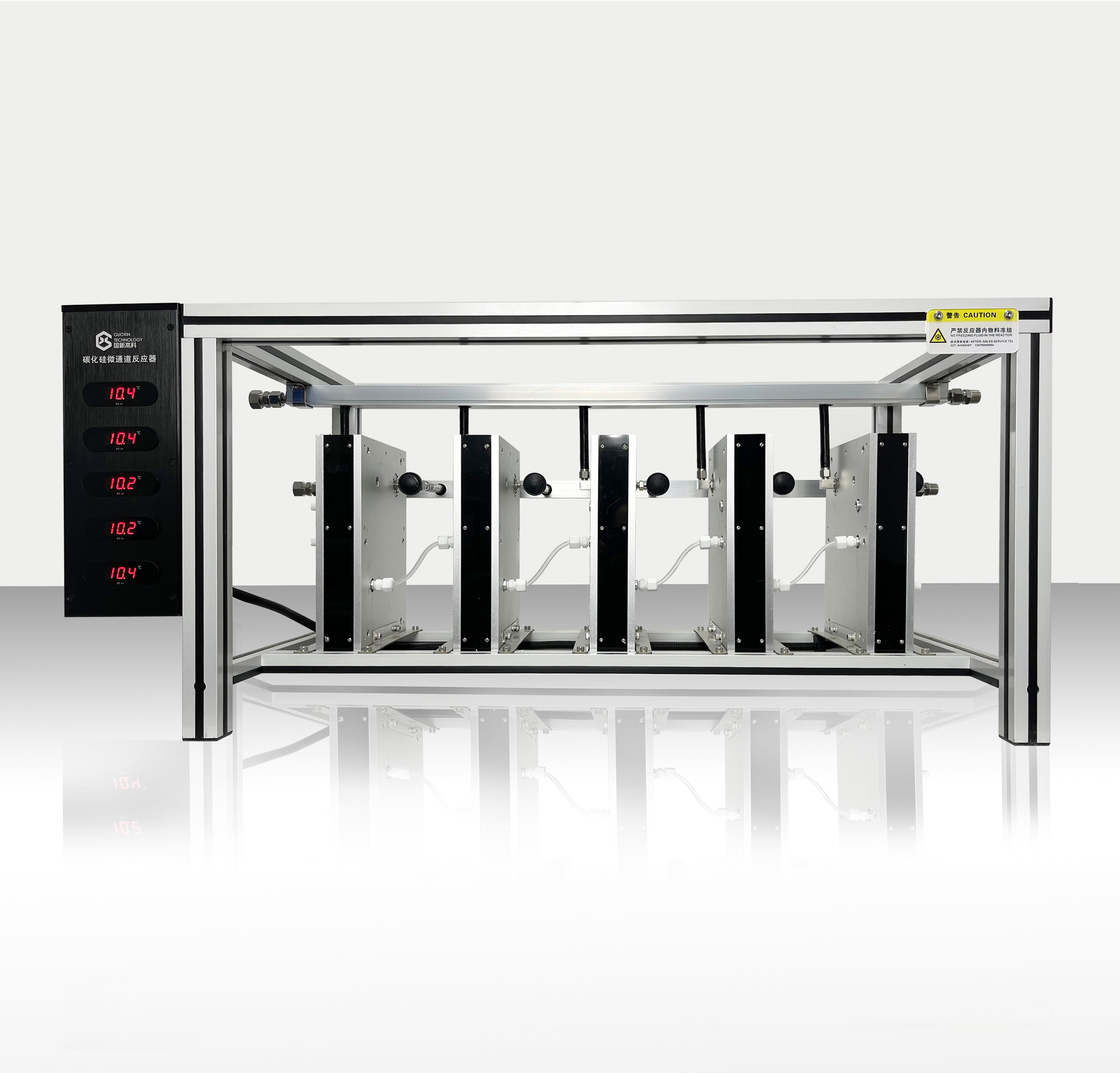

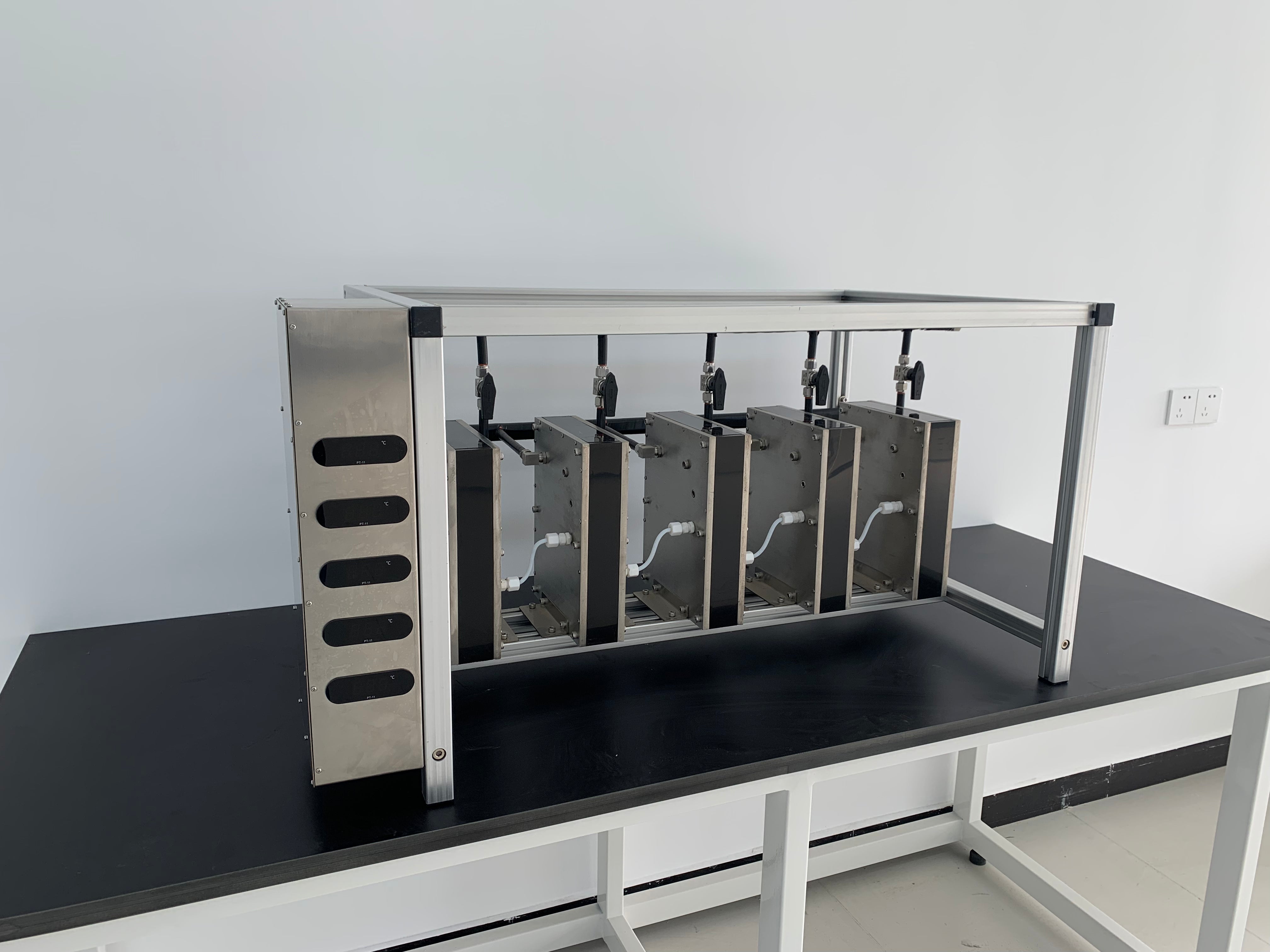

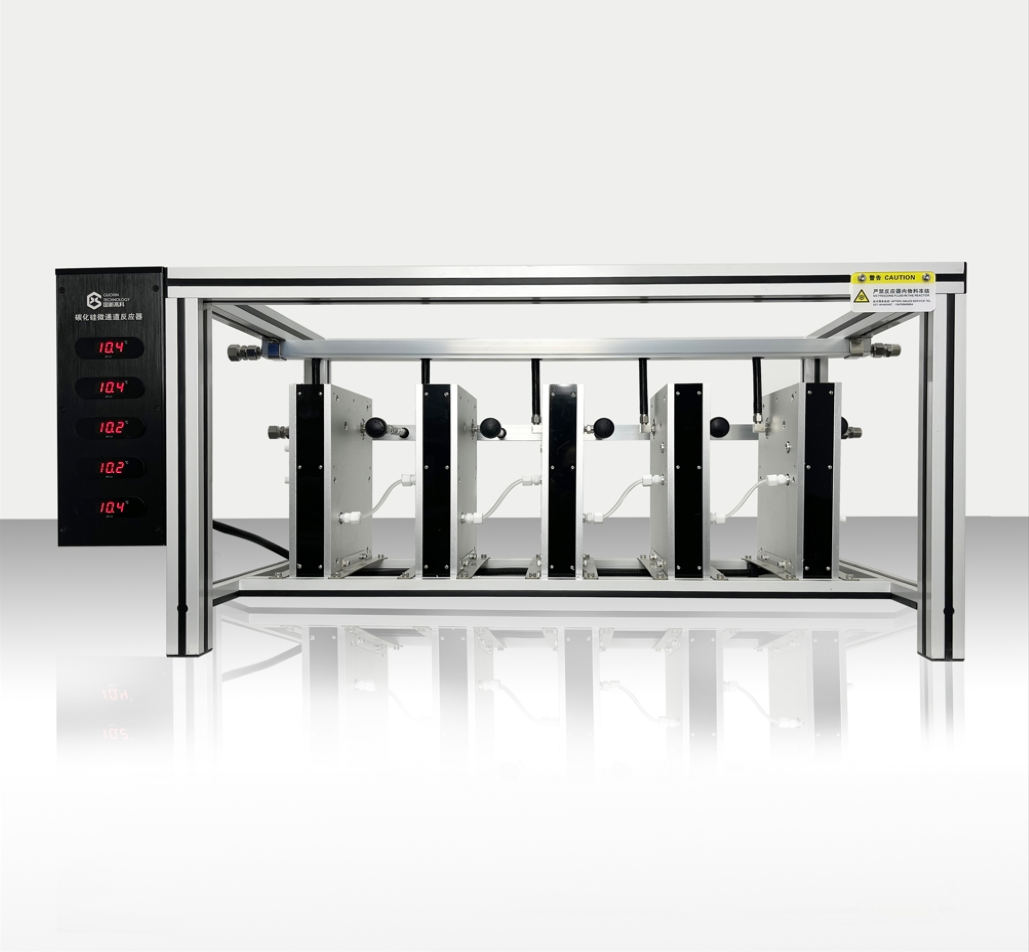

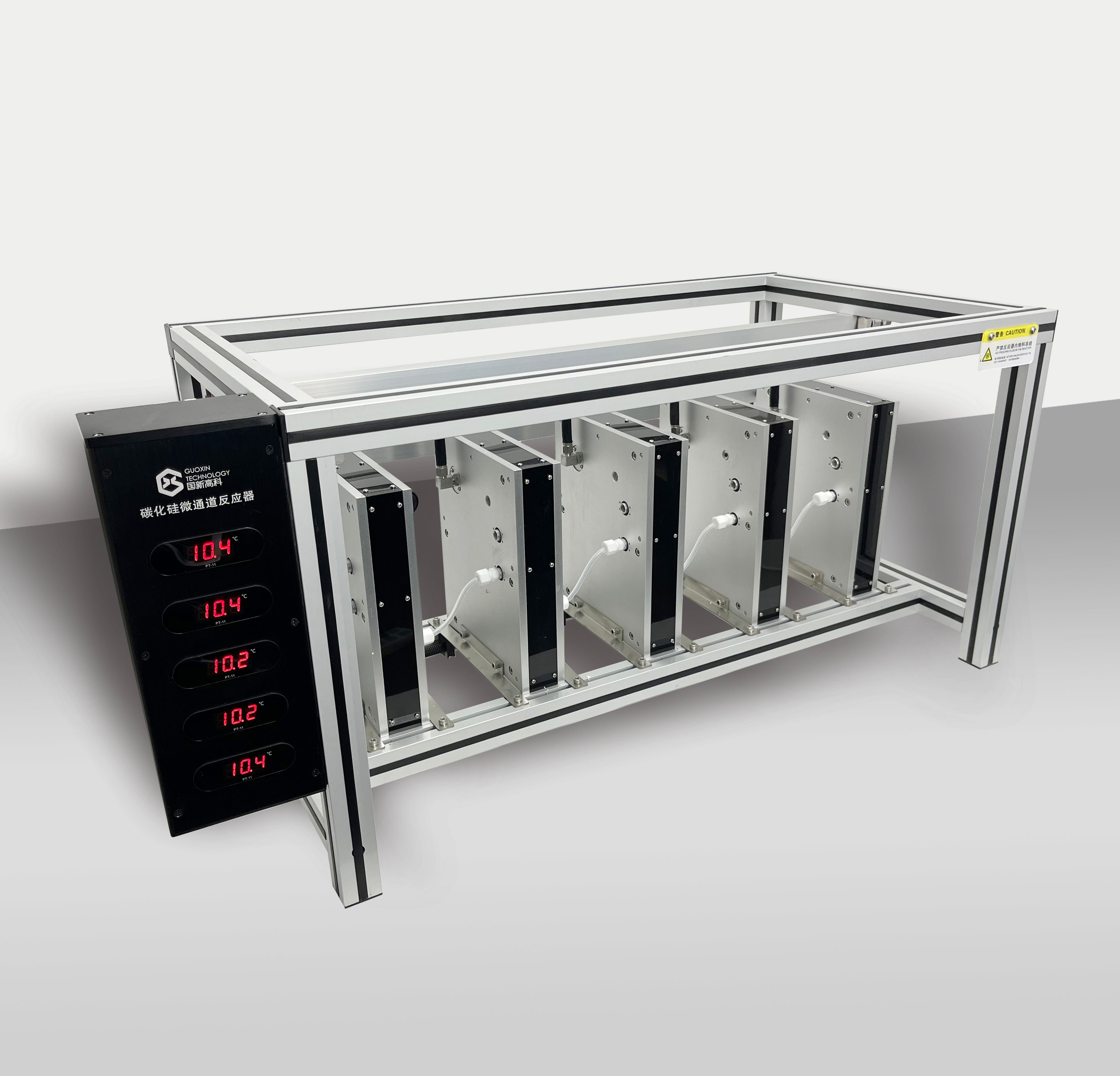

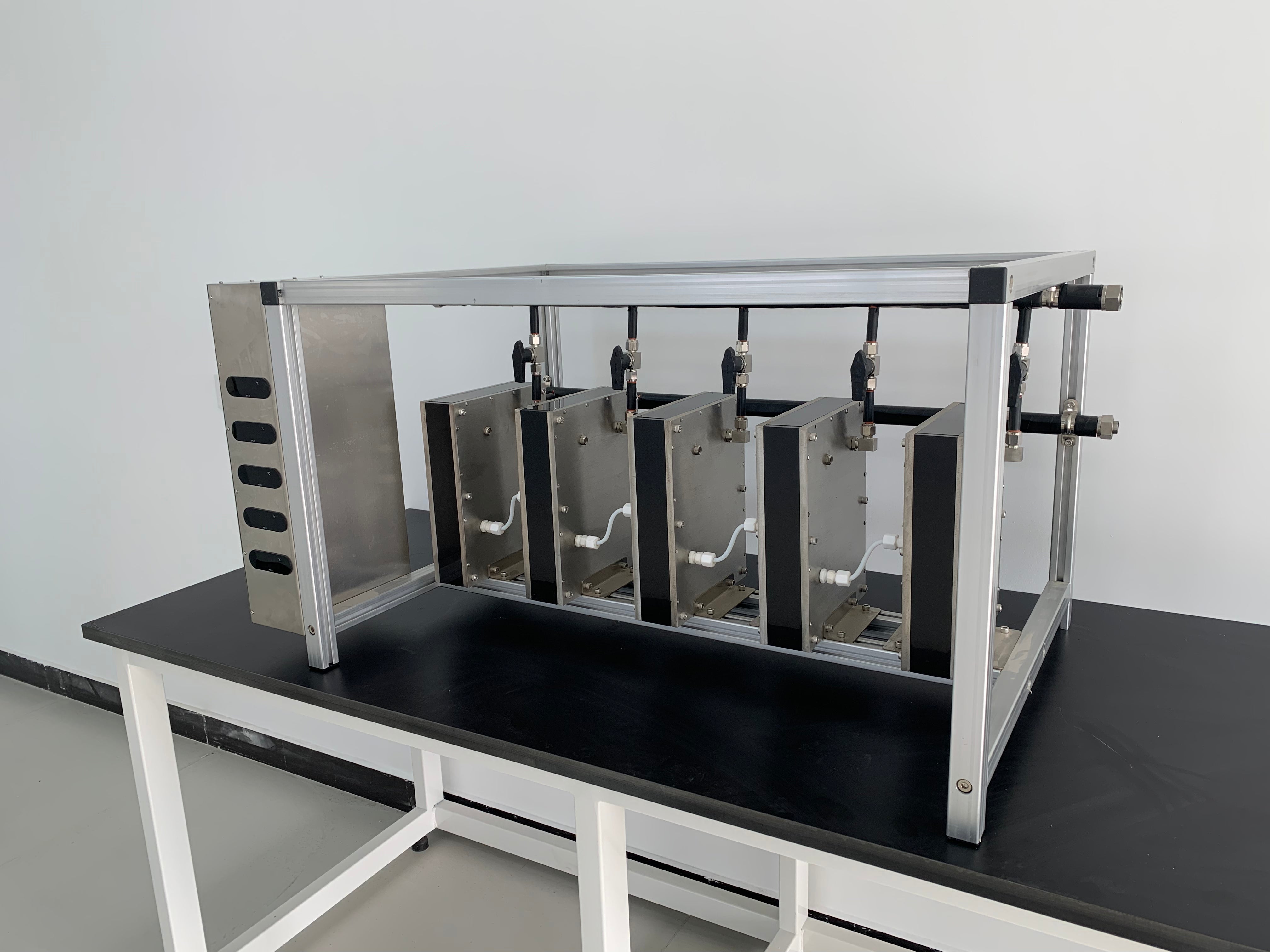

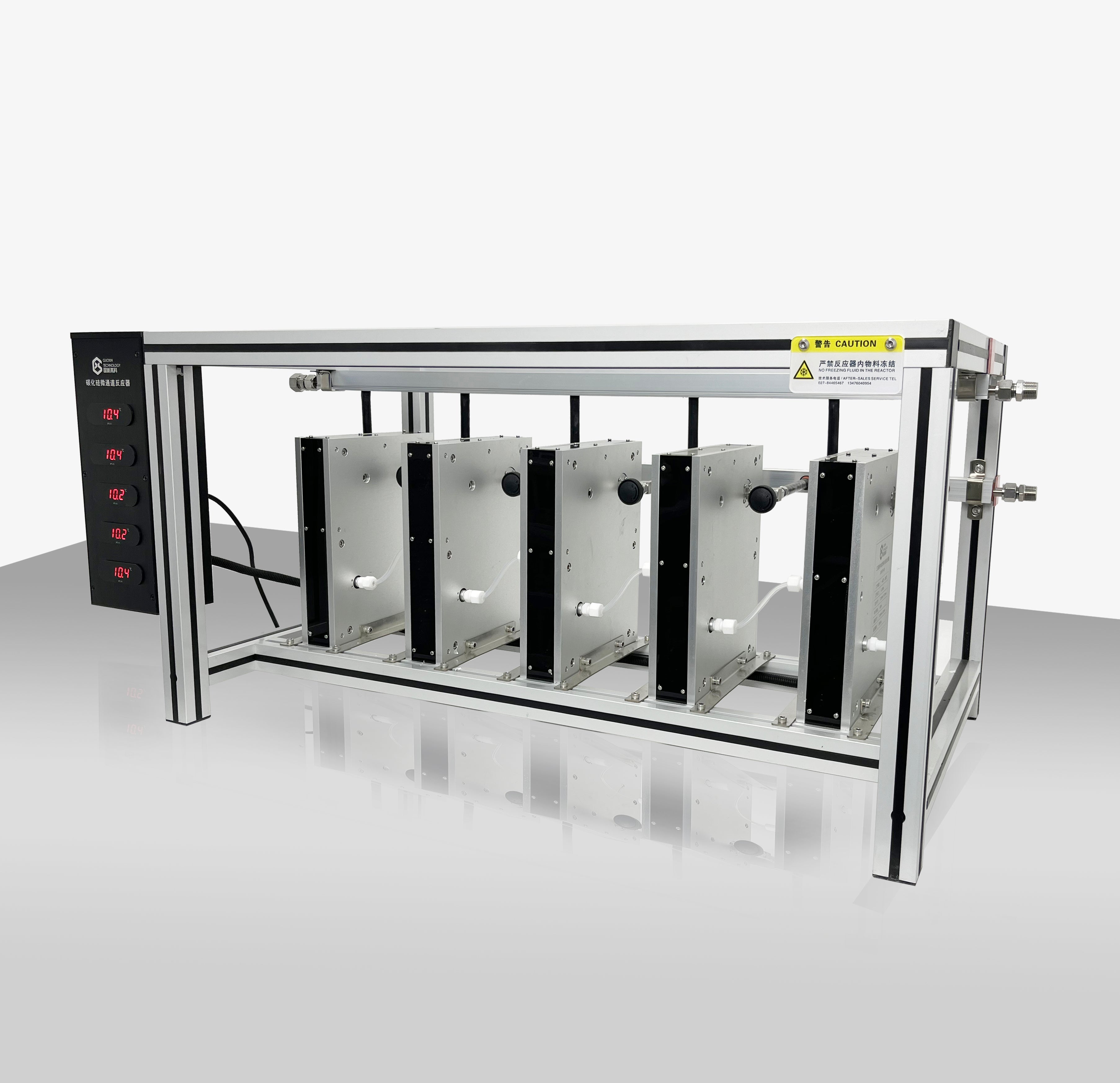

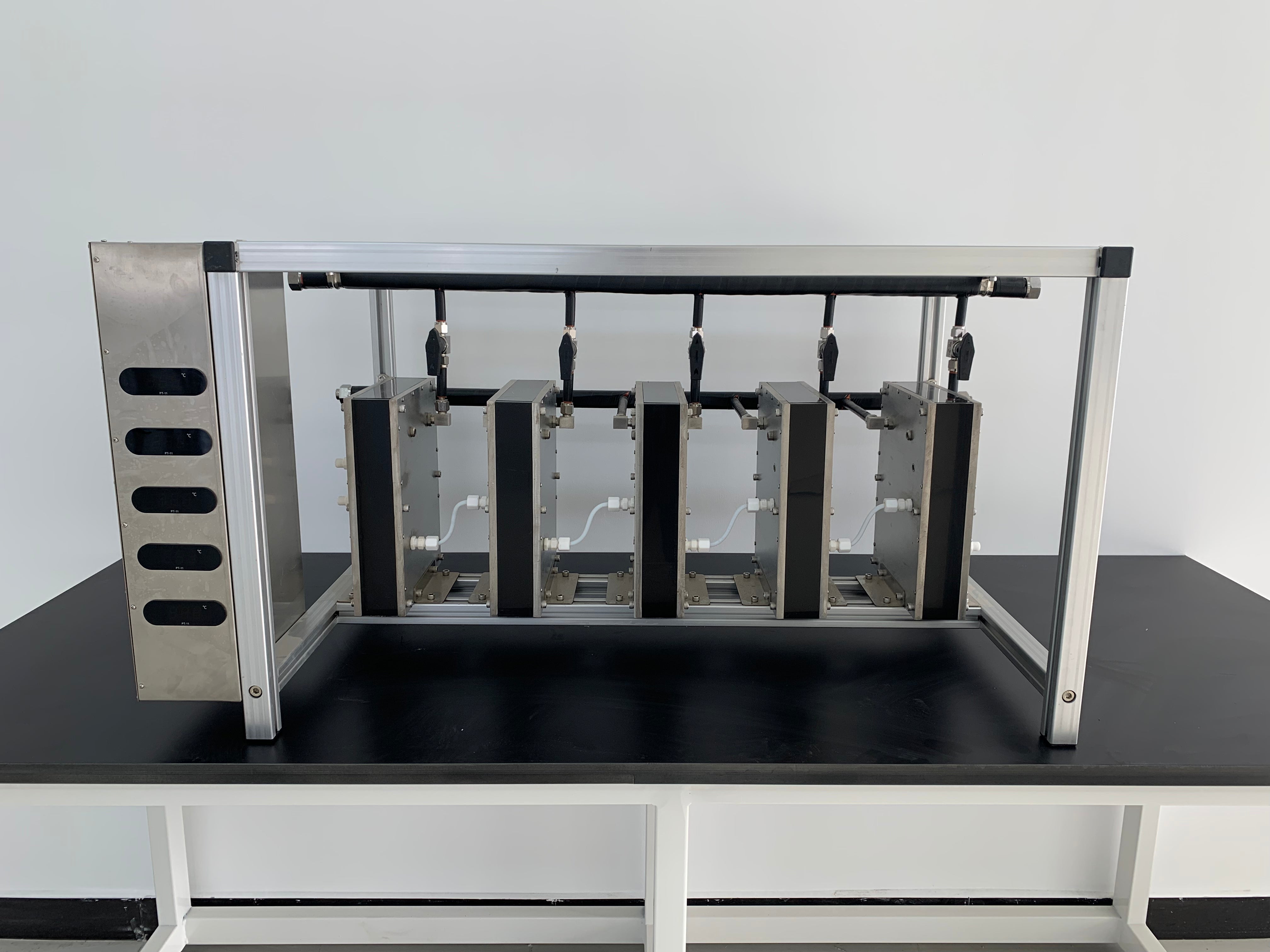

5. This model of reactor consists of 5 sets of reaction chips (standard with multiple temperature indicators), and the number of reaction chips can be customized according to specific requirements.
6. The reactor is equipped with two main heat exchange interfaces, and the standard of these interfaces can be customized as needed. Each reaction chip is equipped with an independent control heat exchange regulating valve, enabling individualized heat exchange temperature control for each chip, providing flexibility in reaction conditions.
2. The reactor unit adopts an integral three-layer hollow silicon carbide plate structure, with a unique production process for the reaction and heat exchange channels, significantly improving safety. The external surface of the reaction chip is insulated with thermal materials, providing excellent thermal insulation.
3. Chip dimensions: 225mm*170mm, channel size: 3.5-6mm, reaction flux: 200t/a, conventional liquid holding capacity: 60ml (customizable in the range of 50-80ml). Operating temperature: -40°C to 200°C, design operating pressure ≤50bar.
4. The reactor is designed with 1/4 PTFE or 316L pipes for inlet and outlet liquid flow (conventional pressure resistance above 30kg/cm²), allowing flexible configuration. Each group of reaction chips adopts a two-in-one-out joint design, and the secondary inlet can be flexibly adjusted for use. The unique design of the connecting pipes prevents detachment and leakage, ensuring pressure resistance, corrosion resistance, and reliable operation in high and low-temperature environments.
5. This model of reactor consists of 5 sets of reaction chips (standard with multiple temperature indicators), and the number of reaction chips can be customized according to specific requirements.
6. The reactor is equipped with two main heat exchange interfaces, and the standard of these interfaces can be customized as needed. Each reaction chip is equipped with an independent control heat exchange regulating valve, enabling individualized heat exchange temperature control for each chip, providing flexibility in reaction conditions.
Discover the Future of Chemical Processing with Our Silicon Carbide Microchannel Reactor
Elevate your chemical synthesis to unprecedented levels of precision, safety, and efficiency with our cutting-edge Silicon Carbide Microchannel Reactor. Designed specifically for pharmaceutical companies, fine chemical manufacturers, and research institutions, this reactor leverages the exceptional properties of silicon carbide—high thermal conductivity and corrosion resistance—to expertly manage exothermic reactions and handle aggressive chemicals with ease. The innovative microchannel design enhances heat and mass transfer, delivering faster reaction rates, higher yields, and superior purity, making it an ideal choice for your most critical applications. Scalable from lab-level experiments to semi-industrial production (up to 200 tons per year), it operates across a wide temperature range (-40°C to 200°C) and withstands pressures up to 30 bar, adapting seamlessly to your unique needs. Prioritizing safety, the reactor minimizes risks associated with hazardous reactions, ensuring a secure environment for your team. Its modular design offers effortless customization and expansion, providing unmatched flexibility for evolving projects. Ready to transform your processes? Contact us today for a consultation and unlock the potential of this revolutionary technology—limited-time offers await early adopters!
